Product Description

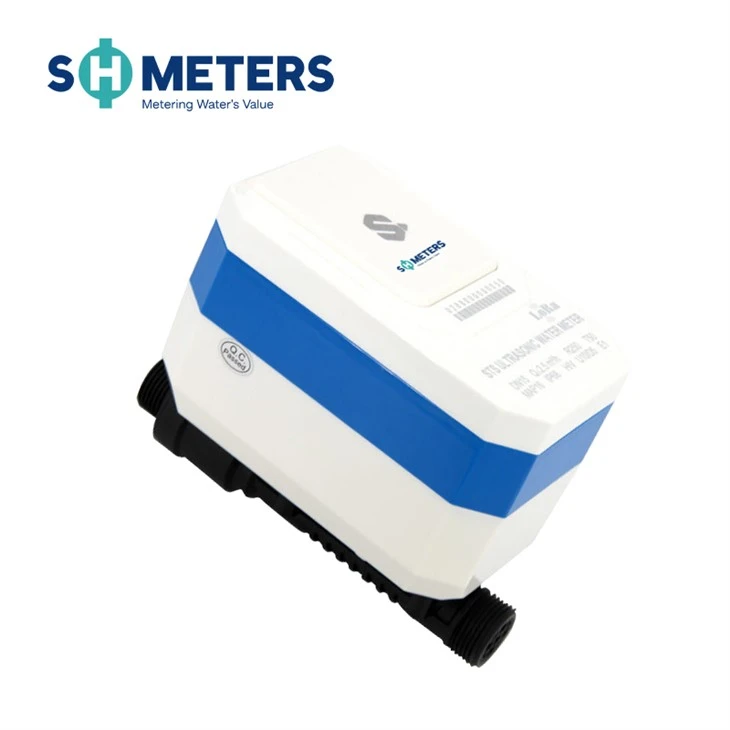

Lub SH5170 STS ultrasonic prepaid dej ntsuas yog tsim los daws cov teeb meem ntawm kev them nyiaj ntsuas dej rau kev siv hauv tsev.
Cov neeg siv tuaj yeem them rov qab thiab nug qhov sib npaug ntawm lub ntsuas dej los ntawm kev nkag mus rau 20-ntsis token code lossis 2-ntsis luv code los ntawm lub xov tooj ntawm tes App lossis CIU.
Khoom nta
- Tsis Muaj Cov Khoom Siv Hluav Taws Xob: Hnav- qauv tsim pub dawb ua kom muaj qhov tseeb siab thoob plaws tag nrho lub neej kev pabcuam ntawm lub ntsuas dej, tsis muaj kev poob qis vim kev siv tshuab.
- Prepaid Function: Lub ntsuas dej txhawb nqa tus qauv "them-ua ntej-siv", ua kom cov dej siv hluav taws xob tswj xyuas kev them nqi ntau dua.
- Tamper-Cov pov thawj thiab qhov khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob khoob
- Tej thaj chaw deb Cov Lus txib: Cov lus qhia tseem ceeb tuaj yeem xa mus rau lub ntsuas dej ntawm lub cuab yeej tuav, nrog kev sib txuas lus siab tshaj plaws txog li 300 meters.
- Kev Tshawb Nrhiav Tsis Txaus Ntshai: STS ultrasonic ntsuas dej muab qhov tiag - sijhawm saib xyuas thiab ceeb toom rau cov yeeb nkab tawg thiab xau, txo cov dej tsis zoo.
- Kev Tiv Thaiv Qib Siab: Tsim los nrog kev tiv thaiv IP68, lub ntsuas dej yog tsim rau ntau qhov kev teeb tsa hnyav.
- Kev sib txuas lus dual hom: STS ultrasonic dej ntsuas txhawb nqa ob qho tib si LoRa thiab LoRaWAN kev sib txuas lus, ua tau raws li cov kev xav tau ntawm kev nyeem ntawv tej thaj chaw deb thiab cov ntaub ntawv xa mus rau hauv ib puag ncig sib txawv.
kev tswj hwm tus qauv
txoj kev sib txuas lus
Daim duab kos duab
|
Nominal
Txoj kab uas hla
|
Ntev (L)
|
Ntev nrog
kev sib txuas
|
Dav (W)
|
Qhov siab (H)
|
Kev sib txuas
|
|
| mm |
Meter xov
|
Tube xov (D)
|
||||
| DN15 | 165 | 260 | 83 | 125 |
R1/2
|
G3/4B
|
| DN 20 | 195 | 300 | 83 | 135 |
R3/4
|
G1B
|
| DN 25 | 225 | 246 | 83 | 140 |
R1
|
G1 1/4B
|
Khoom parameters
|
Nominal Dia
|
mm
|
15 | 20 | 25 | |||
|
Q3/Q1
|
R250 / R400 (yeem)
|
||||||
|
Overload Flow tus nqi (Q4)
|
m³/h
|
3.125 | 5 | 7.875 | |||
|
Nominal Flow Rate (Q3)
|
m³/h | 2.5 | 4 | 6.3 | |||
|
Transitional Flow Rate (Q2)
|
l/h
|
16 | 10 | 25.6 | 16 | 40.32 | 25.2 |
|
Tus nqi qis qis (Q1)
|
l/h
|
10 | 6.25 | 16 | 10 | 25.2 | 15.57 |
|
Cov chav kawm siab poob
|
l
|
△P40
|
△P40
|
△P25
|
|||
|
Chav Kawm Kub
|
T30/T50
|
||||||
|
Maximum Admissible Siab
|
PN16 (232 psi)
|
||||||
|
Electromagnetic Environmental Class
|
E1 | ||||||
|
Chav kawm tiv thaiv
|
IP68 | ||||||
|
Kev taw qhia Installation
|
Txhua lub kaum sab xis thiab txoj haujlwm
|
||||||
|
Flow Profile Sensitivity Class
|
U5/D3
|
||||||
|
Lub neej roj teeb
|
Ntau dua lossis sib npaug li 6 xyoo
|
||||||
LCD Indications thiab tswb
1. Cov nyiaj yuav khoom 2.Credit npaum li cas 3.Tamper 4. Roj teeb theem 5.Currency
6. tshuav nyiaj li cas 7. Tsis tas cov yeeb nkab 8 .Transducer teeb liab 9. Flow status 10.Leakage
11. Valve tawm 12.Valve ntawm 13.Alarm 14.Signal zog 15.Flow kev taw qhia
