Hebei Shanghong Meters Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov neeg muag khoom ntawm ic card prepaid water meter r100 sh5210 hauv Suav teb. Yog tias koj yuav mus rau cov lag luam wholesale zoo ic card prepaid water meter r100 sh5210, txais tos kom tau txais pricelist thiab hais los ntawm peb lub hoobkas.

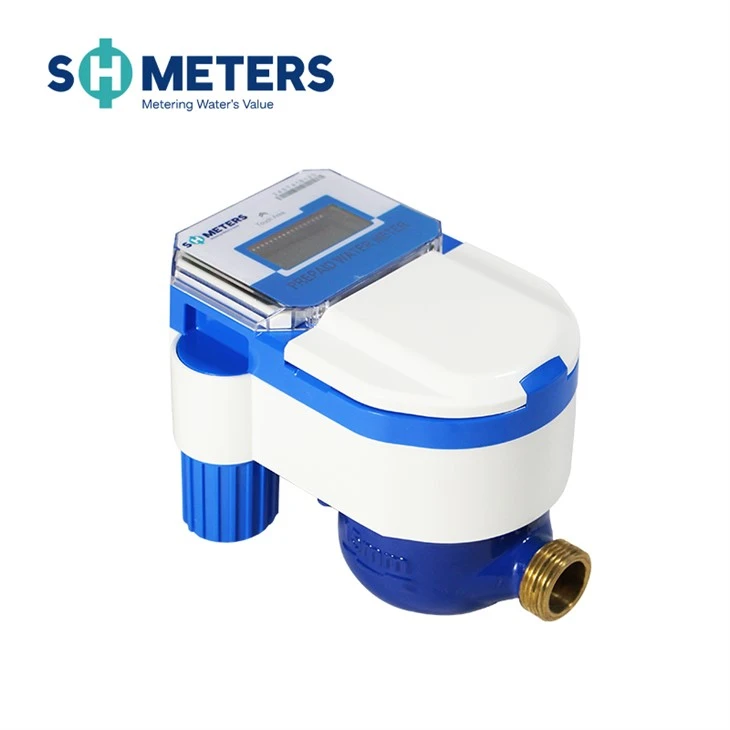

IC Card Water meter Description
SH Meters IC daim npav ntsuas dej (SH5210) ua haujlwm ntawm kev them nyiaj ua ntej: cov neeg siv them ua ntej thiab tom qab ntawd siv dej. Thaum qhov nyiaj tshuav nyob rau hauv lub 'meter' ncav cuag xoom, lub valve cia li kaw kom txog thaum tus neeg siv ua tiav ib qho kev them rov qab.
IC Card dej ntsuas nta
-
Magnetic Attack Protection Function:
Thaum lub ntsuas dej IC Card ntsib ib tug txiv neej- ua qhov sib nqus tawm tsam thaum lub sijhawm ua haujlwm ib txwm, nws yuav kaw lub valve tsis pub dhau ib feeb, thiab LCD yuav pom qhov ua txhaum. Thaum cov hlau nplaum ploj lawm, lub ntsuas dej yuav cia li rov qab mus ua haujlwm li qub hauv ib feeb, daws qhov teeb meem ntawm kev cuam tshuam sib nqus.
-
Tsawg Voltage Protection Function:
Thaum lub roj teeb qhov hluav taws xob ntawm lub ntsuas dej poob qis dua 3.0V, lub ntsuas hluav taws xob yuav pom qhov ntsuas hluav taws xob tsawg thiab txiav txim siab raws li hauv qab -voltage. Lub valve yuav cia li kaw kom tus neeg siv hu rau lub chaw tswj xyuas kev hloov roj teeb.
-
Anti-Hoarding Water Volume Feature:
Txhawm rau tiv thaiv kev txhob txwm tshaj tawm ntawm cov dej, kev yuav khoom ntim txwv tuaj yeem teeb tsa los ntawm kev teeb tsa parameter. Qhov kev txwv no tuaj yeem txiav txim siab thiab hloov kho los ntawm cov tswj hwm dej hauv zos raws li lawv cov kev xav tau tshwj xeeb.
-
IP68 Kev Tiv Thaiv Kev Ua Haujlwm:
Cov khoom siv hluav taws xob ntawm lub ntsuas dej tau ntim tag nrho siv cov ntaub ntawv tsis muaj dej ua los ntawm cov khoom tshwj xeeb, ua tiav qhov kev tiv thaiv IP68. Qhov no txhawb nqa cov khoom lag luam kev ntseeg siab thiab kev pabcuam lub neej.
-
Data Encryption Function:
Lub kaw lus siv lub siab -kev ruaj ntseg encryption algorithm, nrog ib tug -meter-ib - daim npav teeb. Daim npav IC ntse yog cov ntaub ntawv nqa khoom, muab kev ruaj ntseg ruaj khov thiab tiv thaiv kev cuam tshuam.
-
Tiered Water Pricing Function:
Siv cov txheej txheem ntawm categorized metering thiab nce tus nqi ntxiv rau cov neeg siv uas tshaj li teev cov quotas siv dej. Tus nqi qauv tuaj yeem hloov kho kom haum raws li ntau yam kev tswj hwm.
IC Card dej ntsuas ntsuas qhov ntsuas qhov ntev
| Nominal Txoj kab uas hla (mm) | 15 | 20 | 25 | |
|
Ntev L (mm) |
258 | 299 | 345 | |
|
Ntev L1 (mm) |
165 | 195 | 225 | |
|
Dav B (mm) |
90 | 90 | 90 | |
| Qhov siab H1 (mm) | 120 | 120 | 120 | |
|
Qhov siab H2 (mm) |
190 | 190 | 190 | |
|
Txuas xov |
d |
R1/2 |
R3/4 |
R1 |
| D |
G3/4B |
G1B |
G1 1/4B |
|
IC Card dej ntsuas ntsuas ntsuas
| Yam khoom | Chav tsev | Paub meej | |||||
|
Nominal Dia |
mm | 15 | 20 | 25 | |||
|
Q3/Q1 |
R100 | ||||||
|
Overload Flow tus nqi (Q4)
|
m3 / h
|
3.125 | 5 | 7.875 | |||
|
Tus nqi ntws mus tas li (Q3)
|
m3 / h | 2.5 | 4 | 6.3 | |||
|
Transitional Flow Rate (Q2)
|
m3 / h | 0.04 | 0.064 | 0.1 | |||
|
Yam tsawg kawg nkaus tus nqi (Q1) |
m3 / h | 0.025 | 0.04 | 0.063 | |||
|
Qhov tseeb Class |
Chav kawm 2 |
||||||
|
Chav Kawm Kub |
T30/T50/T90 |
||||||
|
Max Admissible Siab |
PN10/NP16 |
||||||
|
Cov chav kawm siab poob |
0.63 ib |
||||||
|
Electromagnetic Environment Class |
E1 |
||||||
|
Environmental Classification |
O |
||||||
|
Chav kawm tiv thaiv |
IP68 |
||||||
|
Kev taw qhia Installation |
H |
||||||
|
Flow Prefile Sensitivity Class |
U10/D5 |
||||||
|
Lub neej roj teeb |
Ntau dua lossis sib npaug li 6 xyoo |
||||||
IC Card water meter Principple
Kev ua haujlwm ntawm lubIC card ntse dej ntsuasyooj yim heev. Tom qab installation, cov neeg siv yuav tsum ua raws li cov kauj ruam no:
① Ua ntej, cov neeg siv mus rau lub tuam tsev tswj xyuas dej kom ua tiav cov txheej txheem qhib thiab them nyiaj;
② Cov neeg ua haujlwm tswj xyuas yuav muab daim npav IC rau tus neeg siv thiab ua tus account qhib thiab them rov qab.
③ Tom qab recharge, tus neeg siv siv daim npav IC los so lub ntsuas dej, thiab nws yuav npaj tau rau kev siv ib txwm.
Thaum qhov seem tshuav nyob rau hauv lub ntsuas dej nce mus txog tus nqi tswb preset los yog xoom, lub meter yuav cia li kaw lub valve thiab ceeb toom tus neeg siv kom rov them thiab them nyiaj.
FAQ
Q: Koj puas muab lub platform tswj hwm, thiab hom lus twg nws txhawb nqa?
A: Yog, peb muaj kev tswj hwm lub platform uas ua raws li lus Askiv. Yog tias koj xav teem lwm hom lus, peb tuaj yeem kho nws rau koj
Q: Kuv xav ua POC ua ntej kev yuav khoom. Koj puas tuaj yeem muab qhov ntawd?
A: Yog lawm, tom qab lees paub tias lub ntsuas dej ua tau raws li koj xav tau, peb tuaj yeem muab cov qauv rau koj.
Q: Kuv yuav ua li cas yog tias kuv daim npav ploj lossis puas lawm?
A: Yog tias koj daim npav IC daim npav dej poob lawm, koj yuav tsum tau thov tam sim rau kev hloov ntawm chav dej dej
