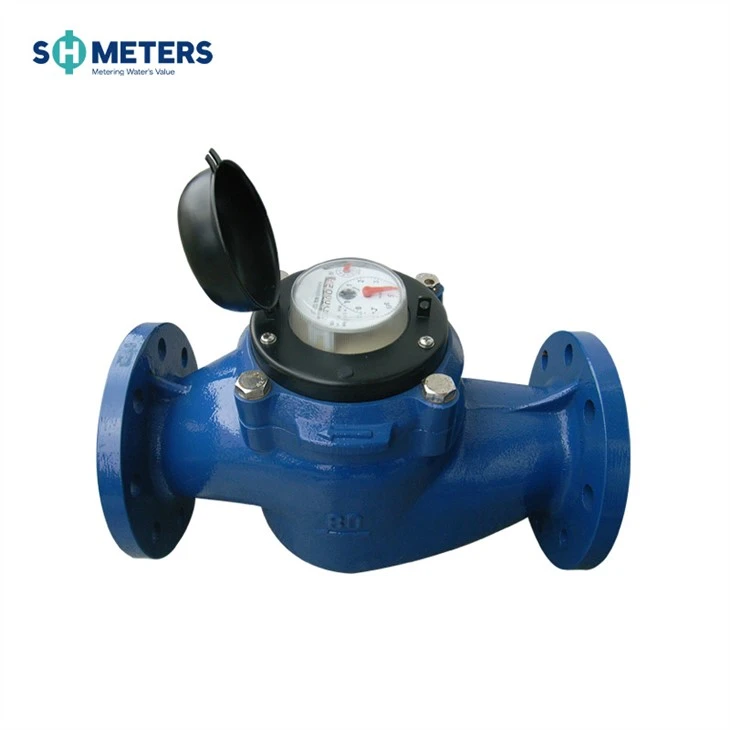

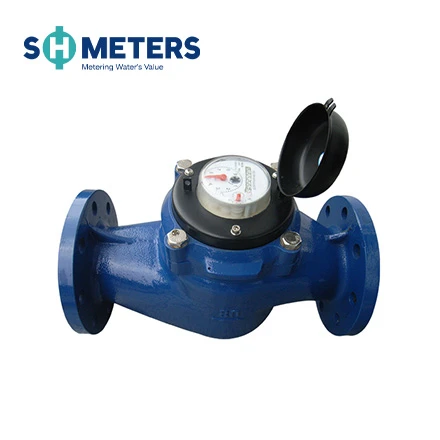

LXCLG(R) -50 ~ 200 (mm)
Vertical tshem tau lub caij woltman txias (kub) dej ntsuas
Daim ntawv thov
Kev ntsuas qhov ntim ntawm cov dej txias (kub) dhau los ntawm cov kav dej. Dej ntsuas yog siv rau hauv tsev, hauv nroog, kev kho mob cog thiab lwm yam.
Feature
· Tshem tawm cov qauv tsim, yooj yim installation thiab txij nkawm, sau npe rau universal siv nyob rau hauv no ntau yam detachable yam tsis tau tshem lub 'meter' los ntawm cov kav dej.
· Dry-dial, Sib nqus tsav rhiab heev, poob siab me me.
· Lub tshuab nqus tsev kaw lub npe ua kom lub xov tooj kom tsis txhob muaj huab cua thiab Khaws cov ntawv nyeem kom meej nyob rau lub sijhawm ntev.
· Xaiv cov ntaub ntawv zoo rau cov yam ntxwv ruaj khov & txhim khu kev qha.
· Cov ntaub ntawv txuj ci ua raws li tus txheej txheem thoob ntiaj teb ISO 4064.
· Nrog qhov raug siab
· Cov khoom siv ntxiv xws li cov khoom sib txuas, cov ntxaij lim dej, cov khoom siv txuas, cov yeeb nkab txuas, Flange, lim
Kev xaiv nta
· Qhov tseeb: R=160/class a
· Loj: DN 50-DN200
· Dej txias / Kub
· Reed hloov kev xaiv
· Flange txheem tuaj yeem xaiv
· 360 degree tig tuaj yeem xaiv
· cam khwb cia hlau, Ductile hlau, stainless hlau, GG25, GGG50, SS304, SS316 lub cev tuaj yeem xaiv.
· Ua haujlwm siab: PN16/25
· Muab pulse tso zis / rs485 modbus / wired tej thaj chaw deb / mem tes splitter / mem tes nyeem zaub
Kev Ua Haujlwm
· Dej kub: {{0}}.1 ° ~ 40 ° (0.1 ° ~ 90 ° rau ntsuas dej kub)
· Dej siab: Tsawg dua los yog sib npaug rau 1Mpa (1.6MPa rau qhov tshwj xeeb xav tau)
Qhov ntev
Hom | Ntev | Qhov siab | Txuas Flange | ||
mm | D1 Txoj kab uas hla | Bolt Circle Diameter | Txuas Bolts (nM) | ||
50 | 280 | 280 | 165 | 125 | 4-M16 |
65 | 280 | 280 | 185 | 145 | 4-M16 |
80 | 370 | 300 | 200 | 160 | 8-M16 |
100 | 370 | 305 | 220 | 180 | 8-M16 |
150 | 500 | 500 | 285 | 240 | 8-M20 |
200 | 500 | 515 | 340 | 295 | 8-M20 |
CEEB TOOM: Lub flange dimension ua raws li ISO7001-2: 1988 tus qauv. Flange tus qauv tuaj yeem hloov kho. Kev txiav txim rau cov khoom ntawm cov kev cai tshwj xeeb
Flow Technique Specification
Hom | Manimum Flow Q4 | Permanent Flow Q3 | Q3/Q1 | Q2/Q1 | Transitional Flow Q2 | Minimun Flow Q1 | Max nyeem ntawv | Kev nyeem ntawv tsawg | |
Daim Ntawv Sau Npe Tag Nrho | Yas Sau Npe | ||||||||
m³/h | m³/h | m³ | |||||||
50 | 50 | 40 | 160 | 1.6 | 0.4 | 0.25 | 999999 | 0.0005 | 0.0002 |
6.3 | 1.6 | ||||||||
80 | 78.8 | 63 | 160 | 1.6 | 0.64 | 0.4 | 999999 | 0.0005 | 0.0002 |
6.3 | 2.5 | ||||||||
100 | 125 | 100 | 160 | 1.6 | 1 | 0.63 | 999999 | 0.0005 | 0.0002 |
6.3 | 3.94 | ||||||||
150 | 313 | 250 | 160 | 1.6 | 2.56 | 1.6 | 999999 | 0.0005 | 0.0002 |
6.3 | 10 | ||||||||
200 | 500 | 400 | 160 | 1.6 | 4 | 2.5 | 999999 | 0.0005 | 0.0002 |
6.3 | 16 | ||||||||
Kev piav qhia Kev Ua Haujlwm Ntawm Ob Lub Reed Switches System
Thov saib daim duab ntawm ob lub reed keyboards hauv qab no, ob lub reed keyboards yuav ua haujlwm "ON" LOSSIS "OFF" raws li cov hlau nplaum haum rau lub pointer lossis iav thaum nws khiav ntawm lub npe, tab sis tsis txhob "ON" ntawm lub tib lub sij hawm, tshwj tsis yog qhov tawm-magnet tawm tsam.
Ob lub reed keyboards ua haujlwm ob "ON" thiab ob "OFF" nyob rau hauv ib puag ncig ntawm tus taw tes lossis lub iav txhais tau hais tias ib lub teeb liab tso tawm, lub hauv paus ntsiab lus no tiv thaiv kev poob lossis overcounting ntawm lub teeb liab tawm vim yog cov keyboards joggling lossis cov yeeb nkab vibrating, yog li assures kev cia siab ntawm lub teeb liab tso zis.
Warranty
Tag nrho cov meters yuav raug lav tiv thaiv qhov tsis xws luag hauv kev ua haujlwm thiab cov khoom siv rau lub sijhawm ib (1) xyoo txij li hnub tau txais. Cov ntsuas tsis raug lossis qhov uas pom nyob rau lub sijhawm no yuav raug hloov pauv yam tsis tau them nqi thaum rov qab mus rau SHMeters.
