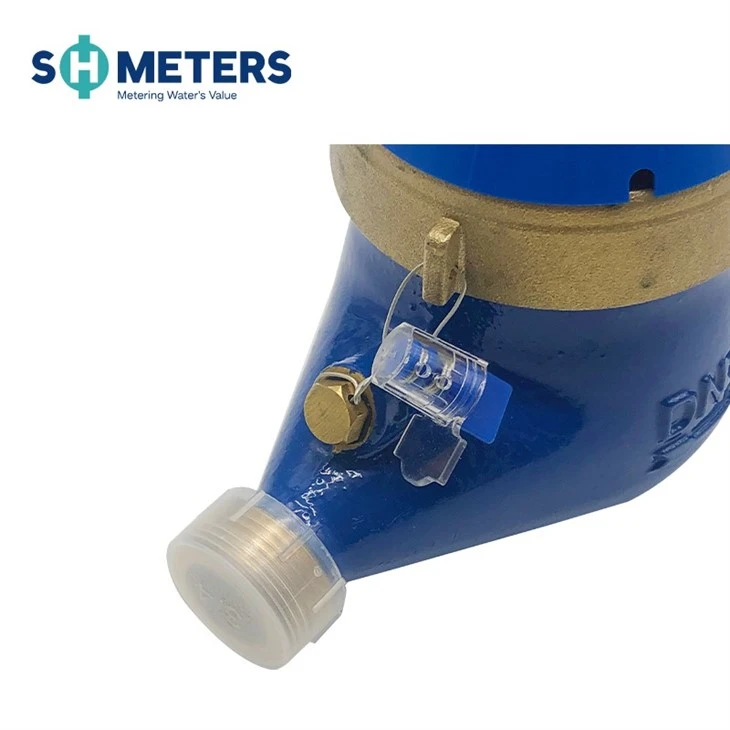

Product Description
Nws yog ibmulti- dav hlau qhuav- hom ntsuas dejrau daim ntawv thov nyob hauv qhov ntau thiab tsawg 15mm-50mm rau cov dej txias / dej kub.
Khoom nta
- Sib Nqus Tsav, Tsawg kis tau tus mob
- Magnetic shield, rau sab nraud magnetic teb tiv thaiv
- Daim ntawv sau npe qhuav kaw kom ntev -lub sij hawm nyeem kom meej
- Sab nraud regulating ntaus ntawv
- Sau npe kaw hom: qhuav- hom; Semi- hom qhuav; Super- hom qhuav
- Haum rau dej txias / dej kub.
- Tsis yog- rov qab valve: Tiv thaiv lubdej ntsuaslos ntawm kev puas tsuaj los ntawm backflow.
- Reed hloov kev xaiv
- Ntau qhov ntev thiab kev sib txuas muaj nyob rau ntawm kev thov
- Xov kawg hom: BSP / NPT, tuaj yeem ua tau raws li qhov xav tau ntawm cov neeg siv khoom.
Cov xwm txheej ua haujlwm
- Dej kub: 0.1℃-50℃rau cov ntsuas dej txias.
0.1℃-90℃rau lub ntsuas dej kub.
- Dej siab: Tsawg dua lossis sib npaug li 16bar rau lub cev tooj dag
Tsawg dua lossis sib npaug li 10bar rau lub cev yas
Zoocia tej yam kev mobNws yog ib qho tseem ceeb rau kev tswj xyuas qhov ua tau zoo thiab kev ua neej nyob ntawm ntau - dav hlau dej ntsuas.
Kev Ua Raws Cai
Cov ntaub ntawv kev ua tau raws li tus qauv thoob ntiaj teb ISO4064
cov ntaub ntawv technical
| DN (mm) | 15 | 20 | 25 | 32 | 40 | 50 | |
| Loj (inch) | 1/2'' | 3/4'' | 1'' | 1-1/4'' | 1-1/2'' | 2'' | |
| Q4(L/h) | 3125 | 5000 | 7875 | 12500 | 20000 | 31250 | |
| Q3(L/h) | 2500 | 4000 | 6300 | 10000 | 16000 | 25000 | |
| R=80 | Q2(L/h) | 50 | 80 | 126 | 200 | 320 | 500 |
| Q1(L/h) | 31.25 | 50 | 78.75 | 125 | 200 | 312.5 | |
| R=100 | Q2(L/h) | 40 | 64 | 100.8 | 160 | 256 | 400 |
| Q1(L/h) | 25 | 40 | 63 | 100 | 160 | 250 | |
| R=125 | Q2(L/h) | 32 | 51.2 | 80.64 | 128 | 204.8 | 320 |
| Q1(L/h) | 20 | 32 | 50.5 | 80 | 128 | 200 | |
| R=160 | Q2(L/h) | 25 | 40 | 63 | 100 | 160 | 250 |
| Q1(L/h) | 15.62 | 39.37 | 39.37 | 62.5 | 100 | 156.25 | |
| Chav Kawm Kub | T50/T90 | ||||||
| Cov chav kawm siab poob | 0.63 wb | ||||||
Cov khoom zoo
Muaj zog adaptability: Ntau- dav hlau dej ntsuas dej ua tau zoo nyob rau hauv qhov qis thiab siab ntws, ua rau lawv haum rau ntau yam dej ntws hauv thaj chaw nyob, kev lag luam, thiab chaw lag luam.
Kev saib xyuas yooj yim: Vim lawv cov qauv tsim yooj yim thiab cov qauv sib npaug,multi- dav hlau dej ntsuasfeem ntau yog ib qho yooj yim los tswj thiab kho, txo qhov kev pheej hmoo ntawm malfunctions.
