Hebei Shanghong Meters Technology Co., Ltd. yog ib qho ntawm cov ua lag luam thiab cov chaw muag khoom ntawm qhuav- dial tooj dag / yas lub cev ntau- dav hlau vane log hom dej ntsuas hauv Suav teb. Yog hais tias koj yuav mus rau cov lag luam wholesale zoo qhuav- dial tooj dag / yas lub cev multi- dav hlau vane log hom dej ntsuas dej, txais tos kom tau txais pricelist thiab hais los ntawm peb lub hoobkas.
MULTI-JET HOM
Qhuav -Dial Brass Body Water Meters
Daim ntawv thov
Kev ntsuas qhov ntim ntawm cov dej txias (kub) hla lub raj xa dej. Dej ntsuas dej yog siv rau hauv tsev, kev lag luam, hauv nroog, kav dej.
Nta
· Sib Nqus Tsav, qis dua kis tau tus mob.
· Magnetic shield, rau sab nraud magnetic teb tiv thaiv.
· Cov ntawv sau npe qhuav kom paub meej ntev nyeem ntawv.
· Sab nraud tswj ntaus ntawv.
Cov khoom siv: 2pcs coupling, 2pcs coupling ceev thiab 2pcs washers.
· Nrog qhov raug siab
· Kev siv kab rov tav
· Accessories muaj xws li Strainer, Rotary piston, Txuas Widget, connector haum
Kev xaiv nta
· Sau npe kaw hom: qhuav hom; Semi- hom qhuav; Super- hom qhuav.
· Qhov tseeb: R=160; 200; chav b; chav kawm c.
· Loj: 15 ~ 50mm.
· dej txias.
· Tsis rov qab valve.
· Reed hloov kev xaiv.
· Ntau qhov ntev thiab kev sib txuas availavle ntawm kev thov.
· Xov kawg hom: BSP / NPT.
· Khoom siv: tooj dag, tooj dag interface, tooj dag
·Brass ua hauj lwm siab: PN16 (16bar)
· Muab pulse tso zis / rs485 modbus / wired tej thaj chaw deb / mem tes splitter / mem tes nyeem zaub
Yam tsawg kawg tso cai yuam kev
· Hauv cheeb tsam qis los ntawm qmin suav nrog rau tab sis tsis suav qt yog ± 5%.
· Hauv cheeb tsam sab saud los ntawm qt suav nrog rau thiab suav nrog qs yog ± 2%; ± 3% rau cov ntsuas dej kub.
Kev Ua Raws Cai
Cov ntaub ntawv kev ua tau raws li tus qauv thoob ntiaj teb ISO 4064.
Cov xwm txheej ua haujlwm
· Dej kub: 0.1℃~ 50℃rau cov ntsuas dej txias.
· Dej siab: Tsawg dua los yog sib npaug rau 1.6Mpa (16 bar).

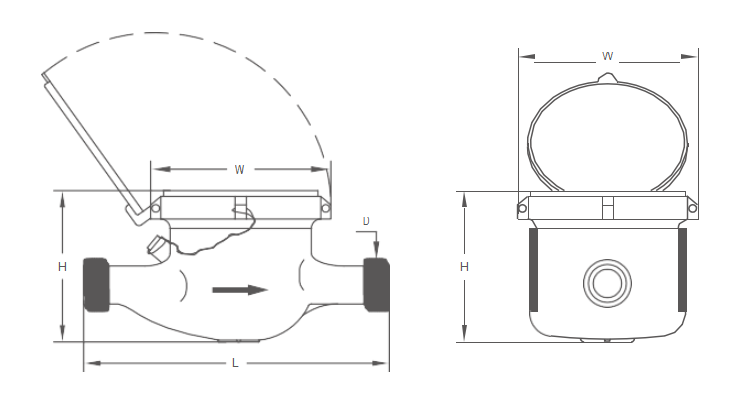

Zuag qhia tag nrho Dimension Thiab Nyhav
| DN (mm) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
| Loj (inch) | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" | 2" |
| Ntev (L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
| Dav (W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
| Qhov siab (H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
| Txuas Xov D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flange kawg |
| Qhov hnyav (kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
Pulse Output Option
Warranty
Tag nrho cov meters yuav raug lav tiv thaiv qhov tsis xws luag hauv kev ua haujlwm thiab cov khoom siv rau lub sijhawm ib (1) xyoo txij li hnub tau txais. Cov ntsuas tsis raug lossis qhov uas pom nyob rau lub sijhawm no yuav raug hloov pauv yam tsis tau them nqi thaum rov qab mus rau SHMeters.
Cim npe nrov: qhuav-dial tooj dag/plastic lub cev ntau- dav hlau vane log hom dej ntsuas, manufacturers, lag luam wholesale, pricelist, quotation
