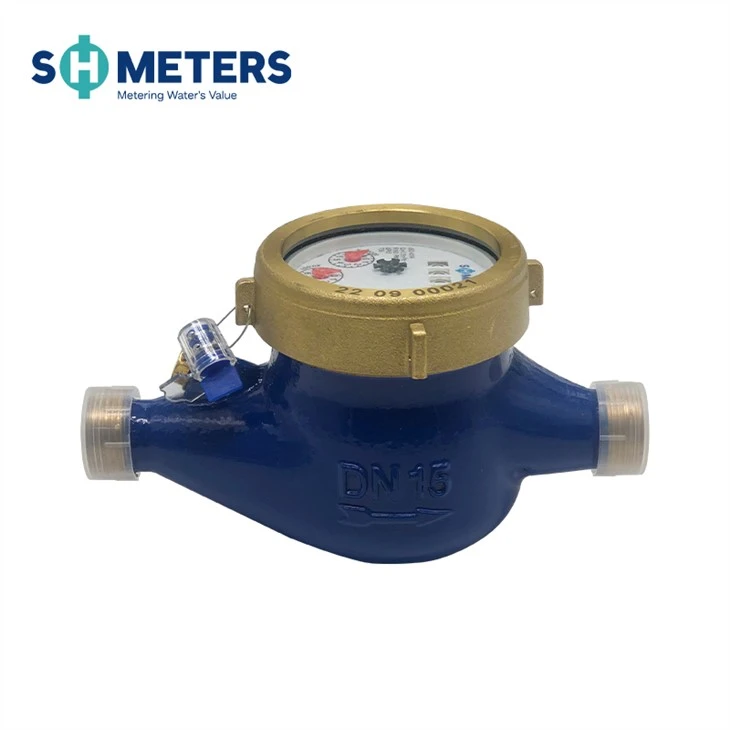

Qhuav-Dial Brass Lub cev Dej Meters
Qhov Tsog Tsis Txaus Siab Tshaj
Hauv cheeb tsam qis dua los ntawm qmin suav nrog tab sis tsis suav nrog t 5%.
Hauv cheeb tsam sab saud los ntawm qt suav nrog thiab suav nrog qsis paub ± 2%; 3% rau cov ntsuas dej kub.
Cov Qauv Cai Ua Raws Cai
Cov ntaub ntawv cov khoom ua tau raws li cov txheej txheem thoob ntiaj teb ISO 4064.
Kev Ua Haujlwm Cov Kev Mob
Temperature Dej kub: 0.1 ～ ～ 50 ℃ rau cov ntsuas dej txias.
· 0.1 ℃ ～ 90 ℃ rau cov ntsuas dej kub.
· Cov dej nqus dej siab: ≤1.6Mpa (16bar).
Zuag qhia tag nrho Qhov Loj Thiab Nyhav
DN (hli) | 15 | 20 | 25 | 32 | 40 | 50 | 50 |
Qhov Coob (inch) | 1/2" | 3/4" | 1" | 1-1 / 4" | 1-1 / 2" | 2" | 2" |
Ntev (L) | 165/190 | 190 | 260 | 260 | 300 | 300 | 280 |
Dav (W) | 98 | 98 | 103.5 | 103.5 | 125 | 125 | 160 |
Qhov siab (H) | 116 | 117 | 124 | 124 | 162 | 162 | 187.5 |
TxuasXov D | G3/4B | G1B | G11/4B | G11/2B | G2B | G21/2B | Flangekawg |
Yuag (kgs) | 1.65 | 1.79 | 1.85 | 2.68 | 5.25 | 7.25 |
Cov Cuab Yeej Nruab Nrab
Lub thawv iav nruab nrog plaub samarium cobalt hlau nplaum, uas tsis yooj yim mus pov tseg, poob thiab poob cov ntaub ntawv.Qhov no ua kom lub neej ntawm kev xa khoom nruab nrab ntawm lub ntsuas dej thiab ntsuas qhov tseeb ntawm cov ntsuas.
Hu Npog
Lub txee disc yog ua los ntawm POM, plooj dawb dawb, nyeem meej thiab pab cuam lub neej ntev.Fixed nrog screws, yooj yim rau hloov.With ob chav reed hloov tsim, yog tias ib qho ntawm nws puas, nws tseem tuaj yeem ua haujlwm ib txwm.
Anti Nplaum Ntiv Nplhaib
Thaum lub pob hluav taws xob reed raug ntsia, lub nplhaib sib nqus los tiv thaiv ntxiv, cov khoom siv hlau ntaus hlau tsis zoo, thiab lub teeb liab lub zog ntawm cov hlau nplaum hlau yog qhov yuav tsum tau 3,000-4,000 gauss, uas ua kom paub tseeb tias cov hluav taws xob tawm ntawm cov mem tes teeb liab.
Kev Tsim Tshuaj Hluav Taws Xob
Lub impeller ncej yog ua los ntawm cov hlau tsis xeb, agate, bushing thiab corundum.Qhov kev pab cuam lub neej thiab tsis raug yog lav.
Kev Hloov Ntaus Iav
High precision tuag, 1 lab teeb tsa yuav hloov pauv kom ntseeg tau tias muaj qhov yuam kev me me, hla dhau, thiab sib cuam tshuam qhov tseeb ntawm cov ntsuas dej thiab lub sijhawm khoom xa tuaj.
Cov Ntaub Ntawv Kev
DN (hli) | 15 | 20 | 25 | 32 | 40 | 50 | |
Qhov Coob (inch) | 1/2" | 3/4" | 1" | 1-1 / 4" | 1-1 / 2" | 2" | |
Q4(l/h) | 3125 | 5000 | 7875 | 12500 | 20000 | 31250 | |
Q3(l/h) | 2500 | 4000 | 6300 | 10000 | 16000 | 25000 | |
R=80 | Q2 (l/h) | 50 | 80 | 126 | 200 | 320 | 400 |
Q1 (l/h) | 31.25 | 50 | 78.75 | 125 | 200 | 250 | |
R=100 | Q2 (l/h) | 40 | 64 | 100.8 | 160 | 256 | 400 |
Q1 (l/h) | 25 | 40 | 63 | 100 | 160 | 250 | |
R=125 | Q2 (l/h) | 32 | 51.2 | 80.64 | 128 | 204.8 | 200 |
Q1 (l/h) | 20 | 32 | 50.5 | 80 | 128 | ||
R=160 | Q2 (l/h) | 22.5 | 40 | 63 | 100 | 160 | 400 |
Q1 (l/h) | 15.62 | 25 | 39.37 | 62.5 | 100 | 250 | |
Max. Kev Nyeem Ntawv (m3) | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | 99,999 | |
Min.Xav (Litre) | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 | |
Max.Pressure (Bar) | 16 | 16 | 16 | 16 | 16 | 16 | |
Siab Poob (⊿P) | 63 | ||||||
Max.Txiaj Ntsig | T=50 /90 | ||||||
Mem Tes Rau Cov Xaiv Tso zis | Vmax=24V | ||||||
Imaxas=100mA | |||||||
Pmax=2W | |||||||
Mem Tes Rau Cov Xaiv Tso zis
Hlau nplaum Txoj Haujlwm | Litre / mem tes |
* 0.0001 | 1 |
* 0.001 | 10 |
* 0.01 | 100 |
* 0.1 | 1000 |
Koj xav tau ib cov tshuaj zoo rau cov dej metering --- Catering txhua yam koj xav tau.
Raws li Tuam Tshoj tus kws tshaj lij cov chaw tsim khoom thiab cov xa tawm txij li xyoo 2013, peb tau tsim cov kev ntsuas dej ntau yam thiab muab kev daws teeb meem rau Kev Ua Lag Luam, kev ua liaj ua teb, Kev Lag Luam thiab Kev Lag Luam hauv Tuam Txhab ntawm hom dej ntsuas thiab ntsuas dej ntse. Tsiv nrog kev hloov pauv ntawm cov thev naus laus zis thiab kev ntsuas kom pom tseeb tau yog lub luag haujlwm ntawm lub tuam txhab txij li nws lub tswv yim thiab peb tau ntxiv cov metering uas tuaj yeem pab txhawb kev siv dej hauv kev siv. Txij li xyoo 2017, peb pib xa tawm cov peev xwm ntse xa dej mus rau tag nrho lub ntiaj teb, thiab cia siab ntau thiab ntau lub teb chaws thiab cheeb tsam neeg tuaj yeem txuag dej nrog peb ua ke nrog cov thev naus laus zis zoo thiab tsim. Tam sim no, SH-MECH Meters tau dhau los ua ib qho tseem ceeb tshaj plaws rau xa dej rau cov dej ntws hauv Suav teb.
Peb yuav muab koj cov khoom rau koj txhais tes kom ncav sijhawm thiab qhia koj cov txheej txheem nrog koj cov kev txiav txim thoob plaws hauv kev muag khoom tag nrho. Los ntawm kev soj ntsuam QC nruj, nruj tswj hwm tus nqi thiab tsib lub hnub qub kev pabcuam zoo, peb ntseeg tias koj yuav muaj kev daws teeb meem ntau dua ntawm kev ntsuas dej.
