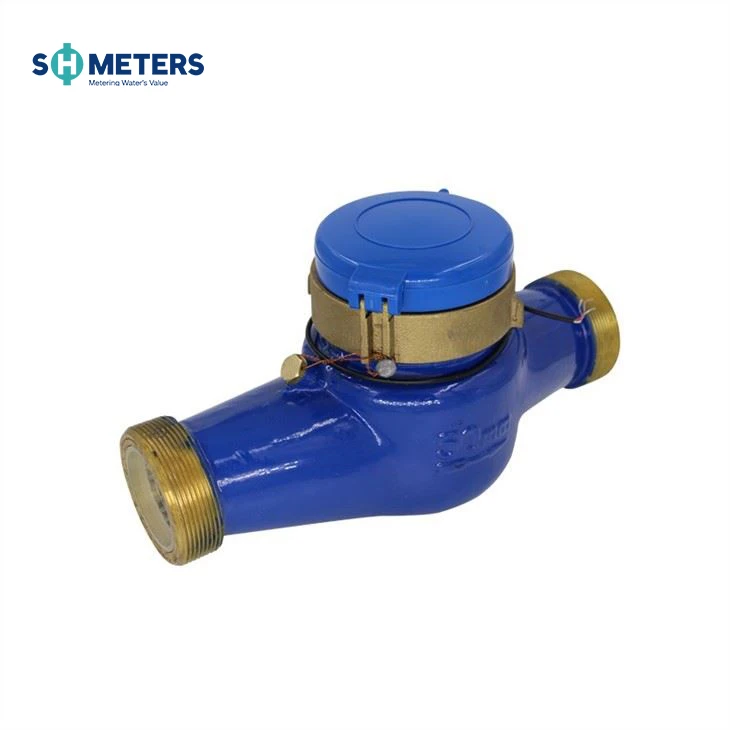

DN15 R160 Multi Jet Liquid Sealed Type Brass Water Meter

APPLICATION
Ntsuas qhov ntim ntawm cov dej txias potable uas dhau los ntawm cov kav dej

NTA
Chav Kawm C. Txais tus pointer thiab lo lus-log ua ke suav ntaus, nrog cov qauv siab, zoo nkauj thiab elegant,
Lub txee yog kaw los ntawm cov kua tshwj xeeb, kev nyeem ntawv yog qhov tseeb ntev,
yooj yim meter daim ntawv luam thiab kev pab lub neej ntev.
Preset tej thaj chaw deb, 100L ib mem tes tso zis.

KEV PAB CUAM
Dej kub: Tsawg dua lossis sib npaug li 50ºC rau ntsuas dej txias
Tsawg dua lossis sib npaug li 90ºC rau ntsuas dej kub
Dej siab: Tsawg dua los yog sib npaug rau 1MPa lossis 1.6MPa yeem
(10bar lossis 16bar yeem)

MAXIMUM PERMISSIBLE yuam kev
Hauv cheeb tsam qis los ntawm Qmin suav nrog rau tab sis tsis suav Qt yog ± 5 feem pua ​​_ Hauv cheeb tsam sab saud los ntawm Qt suav nrog mus txog thiab suav nrog Qs yog: ntsuas dej txias ± 2 feem pua, ntsuas dej kub ± 3 feem pua.
Nco tseg
Cov ntaub ntawv kev ua tau raws li International Standard ISO4064

Cov khoom siv

Txhua lub ntsuas dej muaj ib qho kev sib txuas ntawm kev xaiv: 2pcs tube, 2pcs txiv ntoo thiab 2pcs gasket.

Zuag qhia tag nrho Dimension Thiab Nyhav

DN (mm)	15	20	25	32	40	50	50
Loj (inch)	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2"
Ntev (L)	165/190	190	260	260	300	300	280
Dav (W)	98	98	103.5	103.5	125	125	160
Qhov siab (H)	116	117	124	124	162	162	187.5
Txuas Xov D	G3/4B	G1B	G11/4B	G11/2B	G2B	G21/2B	Flange kawg
Qhov hnyav (kgs)	1.65	1.79	1.85	2.68	5.25	7.25

Technical Data

DN (mm)		15	20	25	32	40	50
Loj (inch)		1/2"	3/4"	1"	1-1/4"	1-1/2"	2"
Q4(l/h)		3125	5000	7875	12500	20000	31250
Q3(l/h)		2500	4000	6300	10000	16000	25000
R=80	Q2(l/h)	50	80	126	200	320	400
	Q1(l/h)	31.25	50	78.75	125	200	250
R=100	Q2(l/h)	40	64	100.8	160	256	400
	Q1(l/h)	25	40	63	100	160	250
R=125	Q2(l/h)	32	51.2	80.64	128	204.8	200
	Q1(l/h)	20	32	50.5	80	128
R=160	Q2(l/h)	22.5	40	63	100	160	400
	Q1(l/h)	15.62	25	39.37	62.5	100	250
Max.Reading(m³)		99,999	99,999	99,999	99,999	99,999	99,999
Tsawg Nyeem Ntawv (Litter)		0.05	0.05	0.05	0.05	0.05	0.05
Max.Pressure (Bar)		16	16	16	16	16	16
Kev poob siab		63
Max. Kub		T=50/90
Pulse Output Option		Vmax=24V
		Imax =100mA
		Pmax =2W

Pulse Output Option

Warranty

Tag nrho cov meters yuav raug lav tiv thaiv qhov tsis xws luag hauv kev ua haujlwm thiab cov khoom siv rau lub sijhawm ib (1) xyoo txij li hnub tau txais. Cov ntsuas tsis raug lossis qhov uas pom nyob rau lub sijhawm no yuav raug hloov pauv yam tsis tau them nqi thaum rov qab mus rau SHMETERS
